Ascentest has successfully delivered a test system for the mass production of Mobile Phone Antennas.

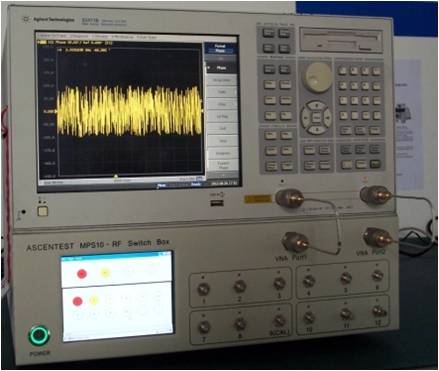

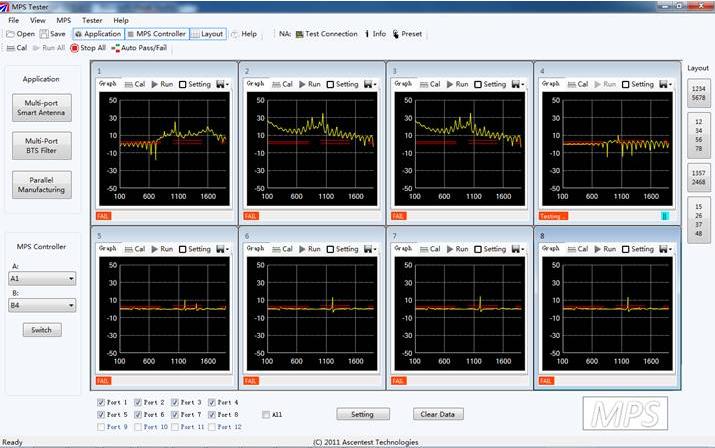

Based on MPS multi-port RF switching solution, the delivered system greatly increases test speed and efficiency, by multiplexing Vector Network Analyzer with multi-threaded programing, multi-channel test & smart RF signal sensing techniques.

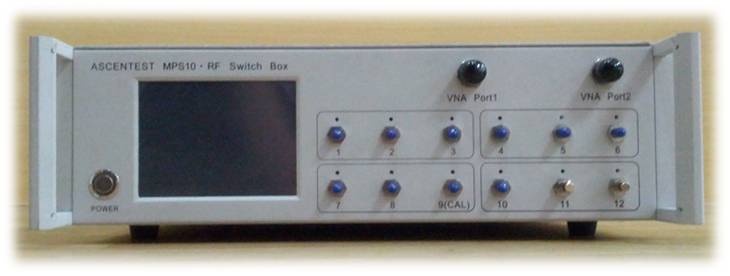

Ascentest MPS Multi-Port RF Switching solutions are suitable for the following test applications:

1. Automatic Testing for Multi-port Base Station Diplexers
    MPS Port Isolation is up to 140dB, well enough to test the parameters of channel isolation and rejection.
2. Automatic Testing for High-speed Data Cables
    MPS hardware & system software support frequency domain and time domain reflection & transmission test (FDR/FDT & TDR/TDT) for balanced DUT up to 18GHz.
3. Automatic Testing for TD-SCDMA / TD-LTE Base Station Smart Antennas
    MPS supports fast & accurate S-parameter testing for 9-port smart antennas.
4. Mass Production Testing for Mobile Phone Antennas
    MPS expands 2-port VNA to 8 or more ports, to increases test speed and efficiency significantly.
5. Automatic Testing for other Multi-port Components
    Such as Directional Couplers, Hybrid Couplers, Power Dividers, Circulators, etc.
