| MPS-Tester Multi-port Vector Network Analysis System |
| MPS-Tester system expands 2-port Vector Network Analyzer to 4 / 8 / 12 /24 or more ports for accurate vector network analysis on multi-port RF / Microwave components, up to 40GHz.
MPS-Tester system consists of MPS (Multi-Port Switch Matrix), 2-port VNA, and system software.
Our proprietary Multi-port Calibration Algorithm significantly improves the system's accuracy for testing multi-port components up to 40GHz.
The system, as an ideal substitute for expensive 4-port and 8-port VNA, is a cost-effective test tool for testing multi-port DUT, such as Smart Antennas, Base Station Diplexers, Directional Couplers, Hybrid Couplers, Power Combiners / Splitters, Circulators, and other multi-port RF / Mirowave components and modules. |
|
|
 |
|
|
|
| HSCT-C USB3.1 Type-C Cable Test System |
| HSCT-C is dedicated fully automatic test system for USB3.1 Type-C cables. HSCT system is built upon the platform of Ascentest HSCT High-Speed Cable Test System. The system is based on the functions of Keysight E5071C (Opt. 4K5, TDR) and Ascentest MPS-HSCT Multi-Port Switch Matrix. The system automatically and accurately tests the Frequency & Time Domain parameters for USB3.1 Type-C cable assemblies, which greatly speeds up the tests and lowers the test cost. |
|
|
|
|
|
|

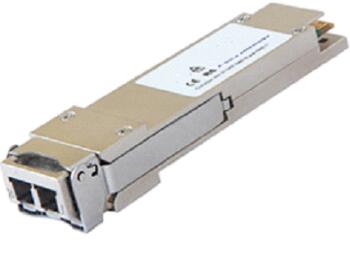

| OMTS Optical Transceiver Module Test System |
| OMTS (Optical transceiver Module Test System) is based upon Ascentest MPS 4x16 Multi-Port RF/uWave Switch Matrix and Ascentest’s proven automatic test platform, implementing the measuring power of Optical Power Meter, Optical Attenuator, Wide-band Oscilloscope, BERT and DC Power Supply, to automatically perform the full 4-channel test for the 40Gbps QSFP+ Optical Transceiver Modules, up to 40GHz. |
|
|
|
|
|
|
| HSCT High-Speed Cable Test System |
| HSCT system is based on the functions of Agilent E5071C (Opt. TDR) and Ascentest MPS-HSCT Multi-Port Switch Matrix. The system automatically and accurately tests the Frequency & Time Domain parameters as well as Eye Diagram for high speed cables up to 100Gbps, such as QSFP28/QSFP+/SFP+/MiniSAS/HDMI, etc. |
|
|
|
|
|
|
| AT890 Compliance Test System for 2.4GHz & 5GHz Wireless Devices |
| Ascentest Releases AT890 Test System for EN 300 328 V1.8.1 & EN 301 893 V1.7.1 on Sep. 1st, 2014.
AT890 systetm is accurate, convenient, flexible, and cost-effective test tool for Test Labs and Wireless Manufacturers to validate 2.4GHz & 5GHz devices according to the new standards. |
|
|
|
|
|
|
| VMNA (Virtual Multi-port Network Analyzer) Test System |
| VMNA system is built upon Ascentest high-speed solid-state RF Switch Matrix (100MHz ~ 8GHz), which expands a 2-port Vector Network Analyzer to 8-port or 16-port Vector Network Analysis System.
Due to the system’s ultra high-speed switching and sweeping measurement, all the operators at the 16 ports virtually feel like they are using that single 2-port Vector Network Analyzer exclusively!
This is why this system is named as “Virtual Multi-port Network Analyzer”, or VMNA as abbreviation. |
|
|
|
|
|
|
| AT891 Compliance Test System for 4G LTE Wireless Devices |
| AT891 system accurately performs compliance test for 4G LTE wireless terminals, according to ETSI EN 301 908-13, and FCC e-CFR Title 47, Part 2 & Part 27.The cost effective AT891 system adopts semi-auto test method to increase the test efficiency dramatically at a lower cost. AT891 system is the best 4G LTE test tool for Test Labs and wireless manufacturers. |
|
|
|
|
|
|
| AT105 EM Shileding/Absorbing Material Test System |
| AT105 Electroagnetic Wave Shileding/Absorbing Material Test System consists of Agilent ENA/PAN/PNA-L Network Analyzer and Ascentest customized accessories and software.
The system automatically tests the following key parameters of the MUT(Material Under Test): Shielding Effect, Permeability/Permittivity, Reflection Loss/Attenuation, Power Loss. |
|
|
|
|
|
|
| AT900 Instrument Calibration System |
| AT900 is a metrology level performance verification test system for instrument calibration.
By implementing advanced test methodology and calibration techniques, the delivered system makes the calibration and performance verification test with extremely high accuracy for Wireless & RF Instruments such as Wireless Testers, Vector Network Analyzers, Signal Generators, Spectrum Analyzers.
AT900 system is ideal instrument calibration tool for big wireless & OEM manufacturers and test labs. |
|
|
|
|
|
