OMTS Optical Transceiver Module Test System
Seller： Ascentest - Call for Inquiry
View technical data
Order this product
Technical support
Related products
There is no related products！！！

Product features and technical data:
System overview

 OMTS (Optical transceiver Module Test System) is based upon Ascentest MPS 4x16 Multi-Port RF/uWave Switch Matrix and Ascentest’s proven automatic test platform, implementing the measuring power of Optical Power Meter, Optical Attenuator, Wide-band Oscilloscope, BERT and DC Power Supply, to automatically perform the full 4-channel test for the 40Gbps QSFP+ Optical Transceiver Modules, up to 40GHz.


Ascentest successfully delivered the OMTS system for the most renowned Optical Module manufacturer and the system has been effectively increasing the customer's test accuracy and efficiency.

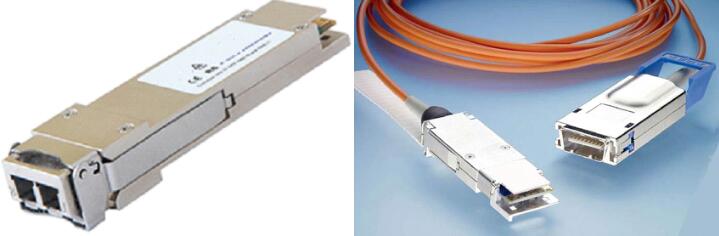

DUT Supported: QSFP+ Optical Module, Optical Transceiver Module, 40Gbps.
Function characteristics

 1.Fully Integrated: Sophisticated Optical Transceiver Module Test System consisting of Optical / Electronics Test Instruments, Ascentest MPS RF/uWave Switch Matrix and system software, for automatic full-parameter test, including Diagnostic data verification via I2C interface.

2.Accuracy: Comprehensive system calibration scheme to ensure highly accurate test.
3.Speed: 8 minutes to complete the full-parameter test for all the 4 channels of QSFP+ Optical Transceiver Module.
4.Flexibility: User Configurable Test Plans and Settings, to meet different test needs for both R&D and Production.
5.Expandability: Environmental test with API for programmable temperature chamber.
6.User Friendly: Intuitive user interface and automatic report generation, and optional test data analysis services.

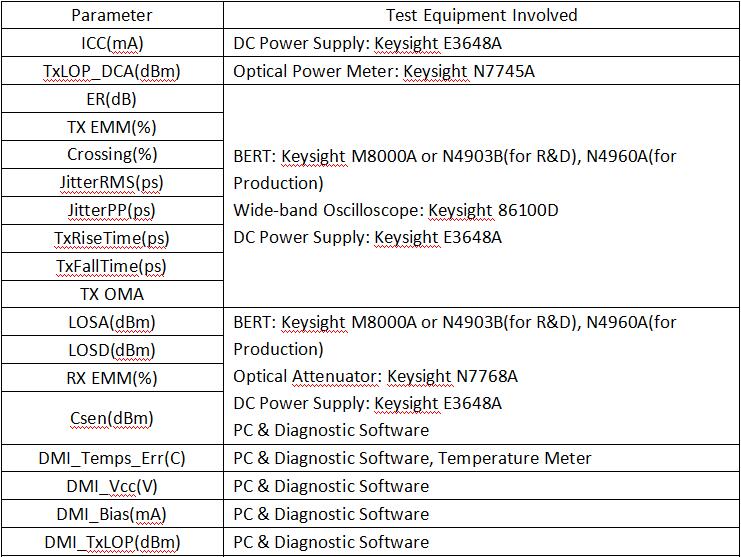

Test Coverage:


System structure

 OMTS System Structure:

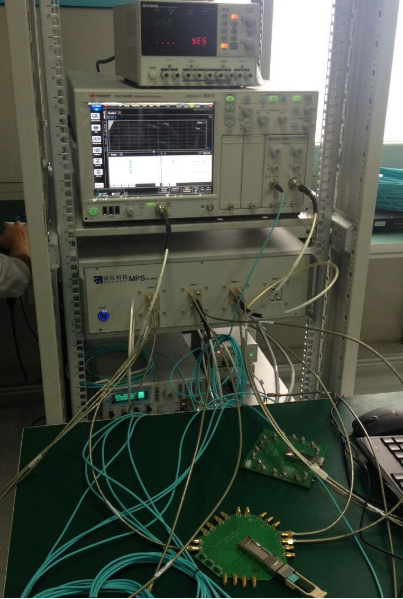

OMTS System Photo:
Software structure

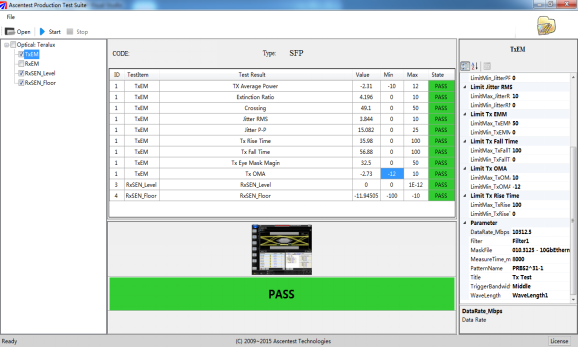

 OMTS System Software:
More

 System Configuration:


RF/uWave Switch Matrix: Ascentest MPS 4x16 Qty. 1
Optical Power Meter: Keysight N7745A Qty. 1
Optical Attenuator: Keysight N7768A Qty. 1
Wide-band Oscilloscope: Keysight 86100D Qty. 1
BERT: Keysight M8000A, N4903B or N4960A Qty. 1
DC Power Supply: Keysight E3648A Qty. 1
System Controller PC Qty. 1
System Software Qty. 1
Diagnostic Software Qty. 1
Test Board Qty. 1
Accessory Pack Qty. 1
Order information（ Contact us）
OMTS Optical Transceiver Module Test System

↘ Download product manual
↘ Download instructions
↘ Download test ability
↘ Business consulting
