HSCT-C USB3.1 Type-C Cable Test System
Seller： Ascentest - Call for Inquiry
View technical data
Order this product
Technical support
Related products
There is no related products！！！

Product features and technical data:
System overview

 USB3.1 adopts Type-C for mobile devices, besides the legacy Type-A & Type-B.

Type-C has the following extraordinary features:
1. Reversible plug orientation & cable direction, with smaller size and longer lifetime (10,000 cycles).
2. Enhanced data rate up to 10Gbps, with direct support for HD video stream.
3. Enhanced Power delivery capacity: 3A for cables, 5A for connectors, with voltage up to 20V.
4. Backward compatibility for USB1.0, USB2.0, USB3.0.

The above features of USB3.1 Type-C bring great challenges for testing, eg.:

1. Reversible plug orientation & cable direction, increases the port redirection of the 4-port test equipment up to 40 times.
2. Enhanced data rate up to 10Gbps, brings the test frequency up to 15GHz.

Ascentest HSCT-C system helps USB3.1 Type-C manufacturers & test labs to meet the above challenges effectively.

HSCT-C is dedicated fully automatic test system for USB3.1 Type-C cables. HSCT system is built upon the platform of Ascentest HSCT High-Speed Cable Test System. The system is based on the functions of Keysight E5071C (Opt. 4K5, TDR) and Ascentest MPS-HSCT Multi-Port Switch Matrix. The system automatically and accurately tests the Frequency & Time Domain parameters for USB3.1 Type-C cable assemblies, which greatly speeds up the tests and lowers the test cost.

HSCT-C is capable of testing the following cables/connectors according to the specification of "USB Type-C Specification Release 1.1":
1. USB3.1 Type-C to Type-C Cable Assembly
2. USB3.1 Type-C to Legacy (Type A/B) Cable Assembly
3. USB3.1 Raw Cable
4. USB3.1 Mated Connector
Function characteristics

1. Proven hardware and software platform ensures accurate, stable and efficient testing.

2. Specifically optimized hardware & software for USB Type-C.

3. MPS RF Switch Matrix performs tens of times of test port redirection.

4. One connection to test all Frequency & Time Domain parameters.

5. Strictly test according to "USB Type-C Specification Release 1.1".

6. Upgradable to support other types of high speed data cables.

7. Comprehensive calibration techniques for accurate test.



Test Capabilities ( for Type-C to Type-C cable assembly):



1. D+/D- Differential Impedance

2. D+/D- Intra-Pair Skew

3. D+/D- Propagation Delaky

4. D+/D- Pair Attenuation

5. ILfitatNq: Insertion Loss Fit at Nyquist Frequencies (Normative)

6. IMR: Integrated Multi-reflection (Normative)

7. IXT: Integrated Crosstalk between SuperSpeed Pairs (Normative)

8. IRL: Integrated Return Loss (Normative)

9. SCD12/SCD21: Differential to Common-Mode Conversion

10. Differential Insertion Loss (Informative)

11. Differential Return Loss (Informative)

12. Differential NEXT & FEXT between SS Signal Pairs (Informative)

13. Differential NEXT & FEXT between D+/D- Pair and SS Signal Pairs (Informative)

14. Shielding Effectiveness (requires specific test fixture)


System structure

HSCT-C System Structure:

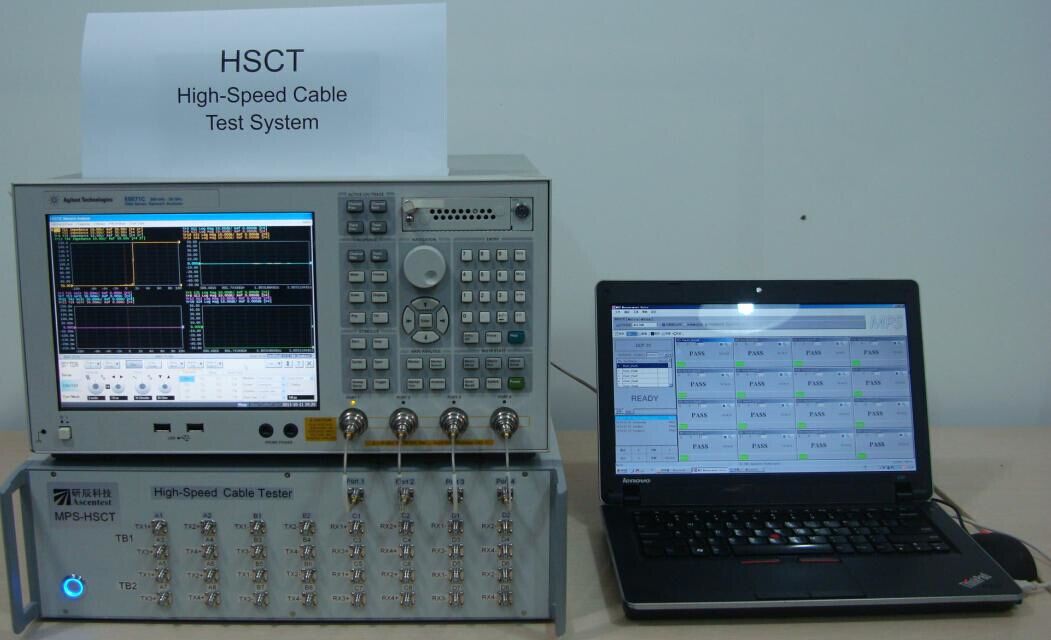

HSCT-C System Photo:
Software structure

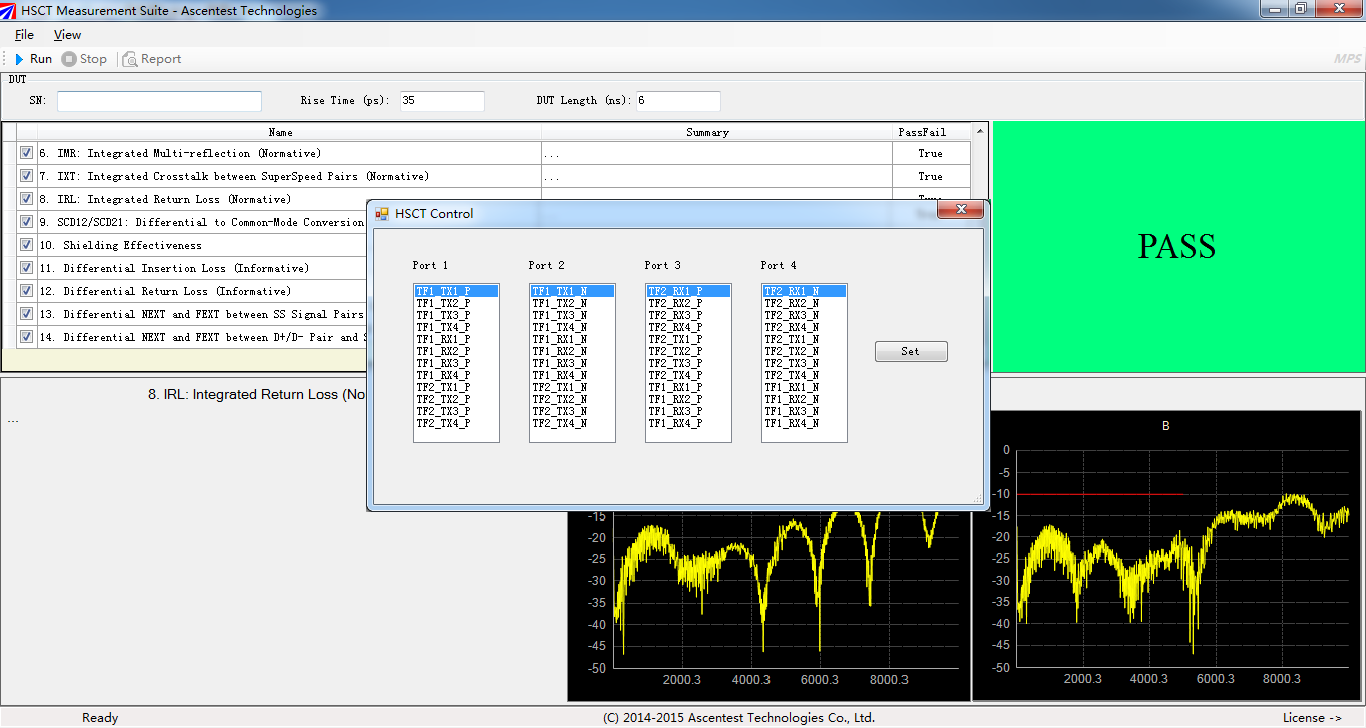

HSCT-C System Software:
More

System Configuration:



Network Analyzer E5071C (Opt. 4K5, TDR) Qty. 1

MPS Multi-Port RF Switch Matrix Qty. 1

USB 3.1 Type-C Test Adapter Board Qty. 2

HSCT-C System Software Qty. 1

Test Cables Qty. 24

System Controller PC Qty. 1
