Ascentest has recently released MPS9, a 2x9 port RF Switch Matrix, for testing the S parameters of 9-port Smart Antennas.
MPS9 RF Switch Matrix, together with a 2-port VNA, compose a MPS-Tester Multi-port Vector Network Analysis System, which is ideal solution for testing the S parameters of 9-port Smart Antennas and other multi-port components up to 18/40GHz.

MPS-Tester System with MPS9 RF Switch Matrix accomplishes a full S parameter test in less than 1 mininute, for a standard 9-port Smart Antenna, which makes the system an ideal tool for Production, Tuning as well as R&D Testing of Smart Antennas.

With MPS-Tester System Software Platform, the user can easily configure and execute all the S-parameter tests for 9-port Smart Antennas.

Meanwhile, Ascentest provides software customization services according to customer's special requirements, such as dedicated test methodology, customized test report, database management, data mining for further analysis, etc.

Ascentest thoroughly verified the system solution's accuracy, efficiency and stability, during the mass production test of smart antennas together with famous antenna manufacturers, before the product release.

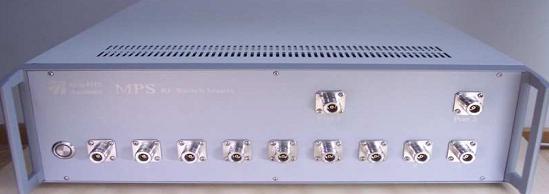

MPS9 RF Switch Matrix (2x9 Port):

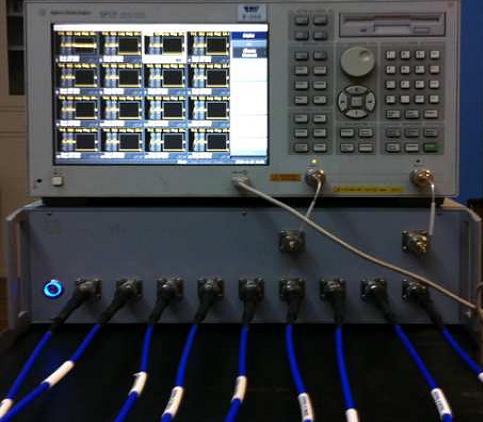

MPS-Tester System for Testing 9-port Smart Antenna and Other Multi-port Components:

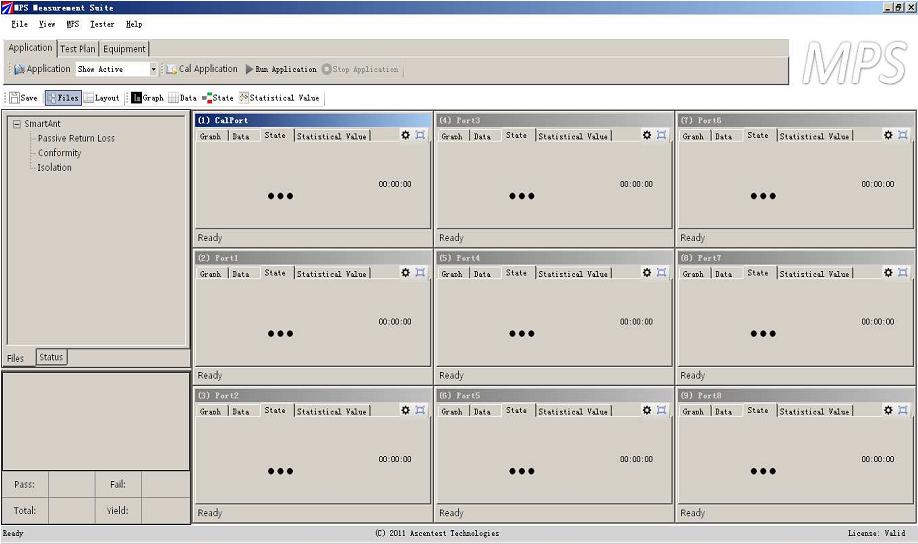

MPS-Tester System Software Platform:
