Ascentest has recently released 40GHz MPS Multi-port Microwave Switch Matrix, as well as 40GHz MPS-Tester Multi-port Vector Network Analysis Test System.

By implementing the Dolphin Multi-port Calibration Algorithm, the system can accurately and automatically measure the S-parameter of multi-port microwave components up to 40GHz with only one connection.

40GHz MPS specifications:

1. Frequency Range: DC~40GHz
2. Switching Topology: 2x4 Matrix
3. Test Port Number: 4 Ports (6/8 or other numbers are available)
4. Port Type: 2.92(f)

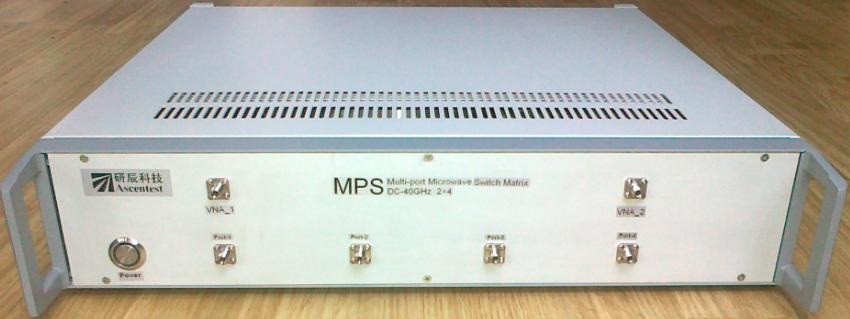

Photo of 40GHz MPS Multi-port Microwave Switch Matrix:

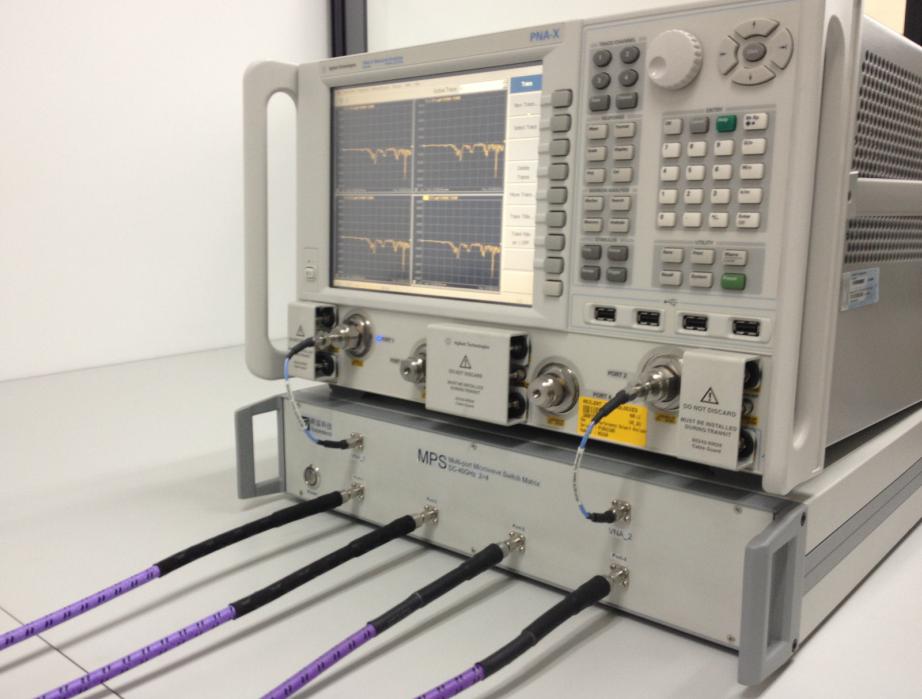

Photos of 40GHz MPS-Tester Multi-port Vector Network Analysis Test System：
