Ascentest has recently upgraded its Multi-UE Switch Matrix MPS-MUE.

As a member of the MPS series switch matrix, MPS-MUE switches RF signal and the 4-line Power Supply simultaneously, which enables Non-stop Multi-UE Testing for R&D or production of wireless terminals.

Product Features:

1. DC Power Switching (SP6T): Switch the 4 lines (+, -, +S, -S) of the external DC power supply, DB9 connector.
2. RF Switching (SP6T): DC~ 3 / 6 /18 GHz, N(f) x 1, SMA(f) x 6, VSWR<1.25 @3GHz, Insertion Loss<2.0dB @3GHz.
3. Remote Control: LAN (RJ45), simplified command set.
4. Size: EIA 2U, 90cm (H) x 45cm(W) x 28.5cm(D)
5. Switching Port Expansible: Cascade MPS-MUEs to expand switching test ports.

MPS-MUE System Connection:

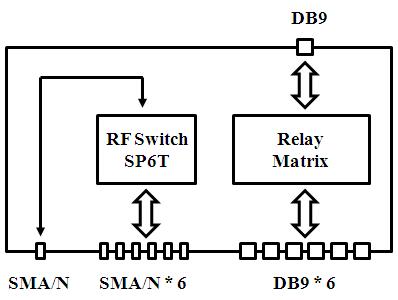

MPS-MUE Block Diagram:

MPS-MUE Product Photo:
