Ascentest has recently released HSCT High-Speed Cable Test System.

Based on the functions of Agilent E5071C (Opt. TDR) and Ascentest MPS-HSCT Multi-Port Switch Matrix, the system automatically and accurately tests the Frequency & Time Domain parameters as well as Eye Diagram for high speed cables, such as QSFP+/SFP+/MiniSAS/HDMI, etc.

The system implements some algorithm and techniques, including Fast Calibration, De-embedding, Parallel Processing, to ensure the accuracy & efficiency for both R&D and Manufacturing testing up to 20GHz.

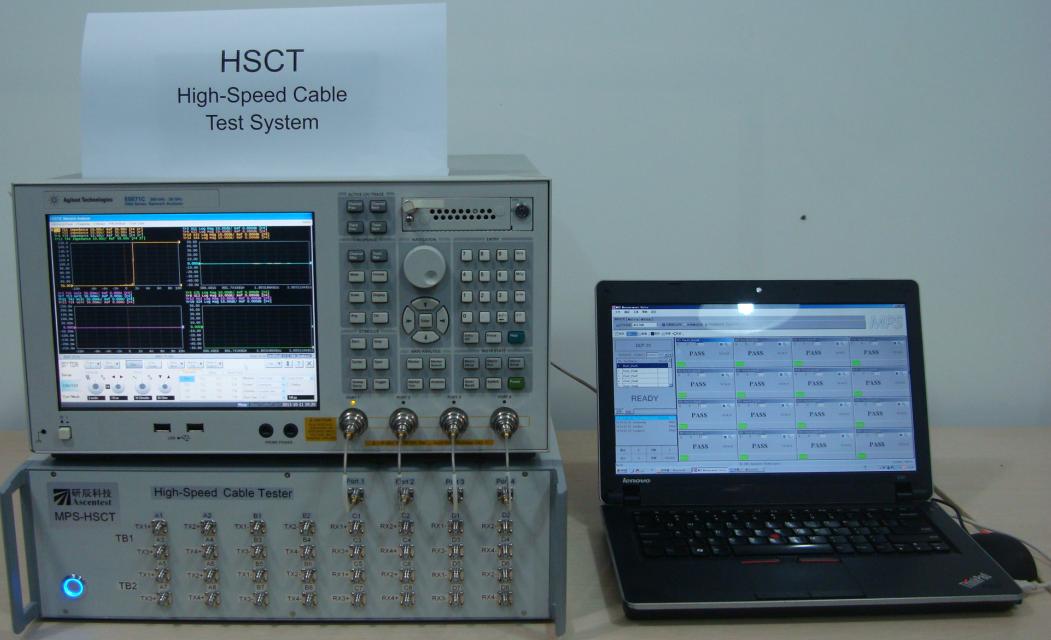

HSCT System Overview:

HSCT System Structure:

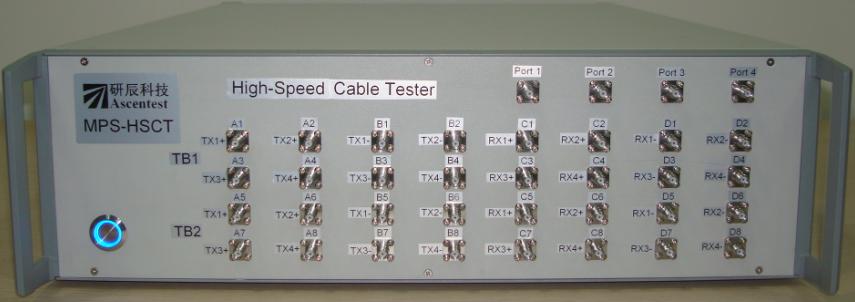

MPS-HSCT (Multi-Port Switch Matrix for High Speed Cable Testing):

HSCT Test Results:
