AT900 Instrument Calibration System
Seller: Ascentest - Call for Inquiry
View technical data
Order this product
Technical support
Related products
There is no related products!!!

Product features and technical data:
System overview

AT900 is a metrology level performance verification test system for instrument calibration.
By implementing advanced test methodology and calibration techniques, the delivered system makes the calibration and performance verification test with extremely high accuracy for Wireless & RF Instruments such as Wireless Testers, Vector Network Analyzers, Signal Generators, Spectrum Analyzers.
AT900 system is ideal instrument calibration tool for big wireless & OEM manufacturers and test labs.



The typical instrument maintenance procedure is as follows:

1. Visual inspection, Power On & Self Test.
2. Calibration, such as RF Performance Verification Test.
3. Adjustment, if the above test fails.
4. Re-test, perform the above test again after the Adjustment
5. Repair, if the instrument still can not pass the test after Adjustment.



AT900 system is focused on the RF Performance Verification Test in the calibration procedure, which requires ultra-high test accuracy at metrology level.

AT900 system does not support instrument adjustment.

Function characteristics

1. Delivered System, built on Mature & Flexible Modular Platform.
2. AT900 Systems have been successfully adopted by the most famous OEM manufacturer, which greatly reduces the customer's yearly cost on instrument calibration.
3. System is based on high-end test equipment from Agilent or R&S, with advanced test methodology and calibration techniques, which ensures extremely-high test accuracy and test data traceable back to NIST of USA or PTB of Germany.
4. Automatic fast test reduces the instrument down-time.
5. Expandable & Upgradeable system hardware and software platform to support calibrating different models of instruments from different manufacturers.

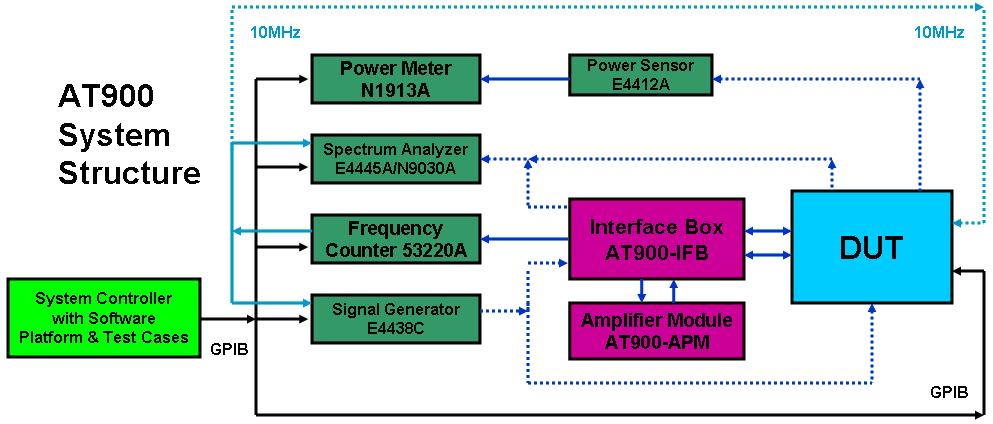

System structure

Complete System Structure:

Simplified System Structure:

Software structure

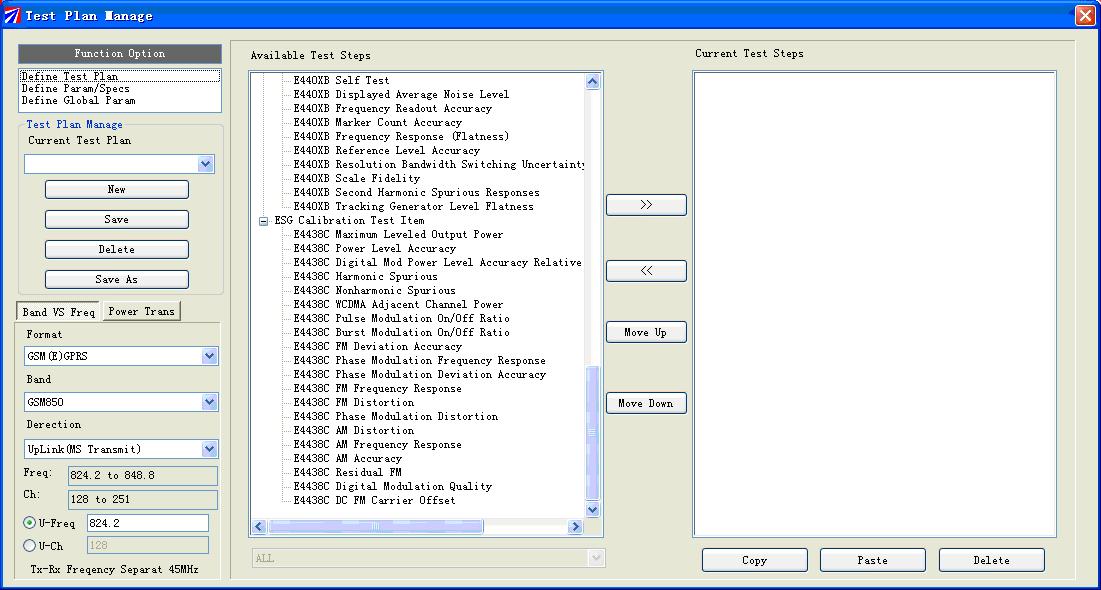

Test Plan Management:



More

AT900 Calibration Capabilities:




  Instrument Type Manufacture and Model
  Wireless Tester R&S CMU200, R&S CMW500, Agilent 8960, Agilent N4010A, LitePoint IQ201x
  Vector Network Analyzer Agilent ENA Series E5071A/B/C, R&S ZVB
  Spectrum Analyzer Agilent ESA Series E4402B/03B/04B
  Signal Generator Agilent ESG Series E4438C

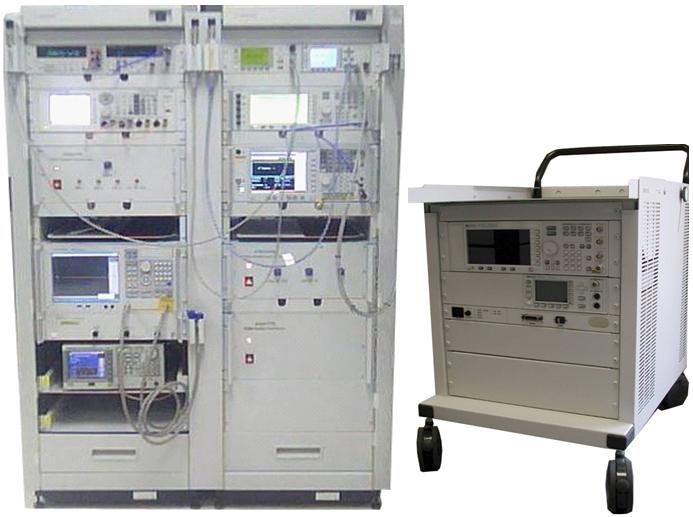

Photos of delivered systems:
