MPS-MUE consists of a SP6T RF Switch and a Relay Matrix, to simultaneously switch wireless RF signal and DC Power Supply.
The test system based on MPS-MUE can be used for Design Verification or NPI testing for Multiple (6 or more) UEs continuously without operation interruption.

MPS-MUE features:

1. Continuous UE testing by switching RF & DC Power simultaneously, which greatly increases test efficiency and convenience.
2. Based on the Mature, Flexible and Modular platform of Ascentest MPS Multi-Port RF Switch Matrix.
3. Deliberatively selected RF Switch and Relays to ensure excellent performance, stability and lifecycle.
4. DC Power routing with 4-line sensing connection to provide DC Power for UEs accurately.
5. Simplified product structure and control commands, ease of maintenance and remote control.
6. Very high performance / price ratio.
7. Customization is available.

1. Frequency Range: DC~18GHz (specifications @ 3GHz)
2. RF Port Type (1+6): SMA(f) or N(f).
3. Port VSWR: <1.25
4. Insertion Loss <2.5dB
5. Max Power: >10W (Cold Switching)
6. Switching Cycle (Cold Switching): >1 million, optional >5 million
7. Switch Time: <50ms
8. DC Power port type (1+6): DB9(f) or DB9(m)
9. DC Power routing: 4-line sensing
10. Size: Standard EIA 2U

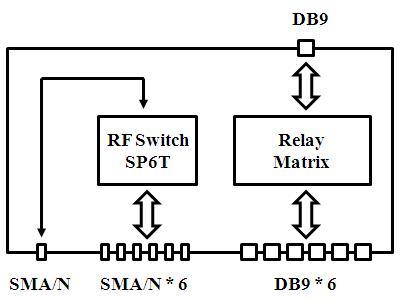

MPS-MUE Block Diagram:

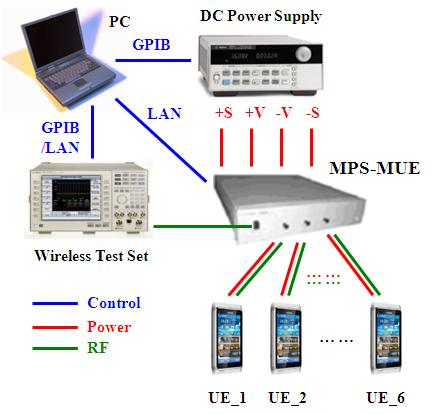

Test System Based on MPS-MUE:

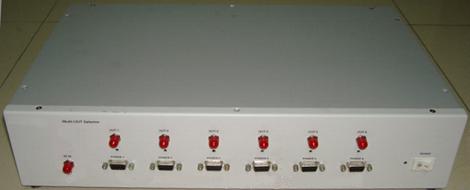

MPS-MUE:
