Ascentest upgrades AT900 Instrument Calibration System.



The upgrade includes simplifying system structure, re-constructing the system software platform, adding test cases to support latest instruments according to both Factory Calibration Procedures and China National Standard Calibration Procedures. Furthermore, the system’s expandability is also optimized for calibrating other models of  instruments in the future, which better protect the customer’s ROI.

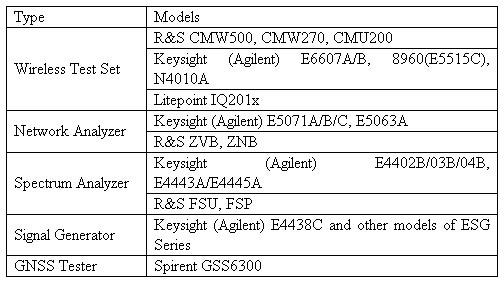

Ascentest AT900 system is now supporting the precision metrology calibration performance test for the following instrument models:

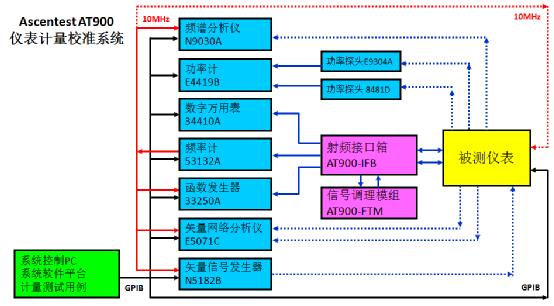

AT900 System Structure after Upgrade:





AT900 GUI after Upgrade:

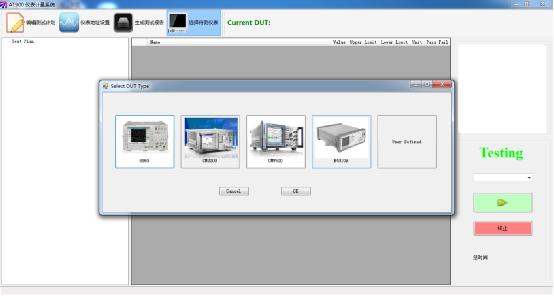

Select Instrument Under Test:

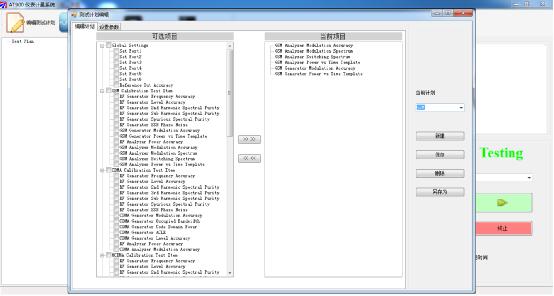

Edit Test Plan:

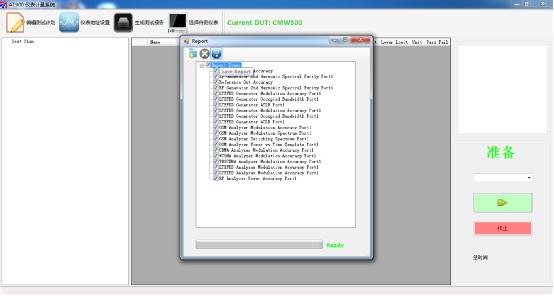

Generate Test Report:

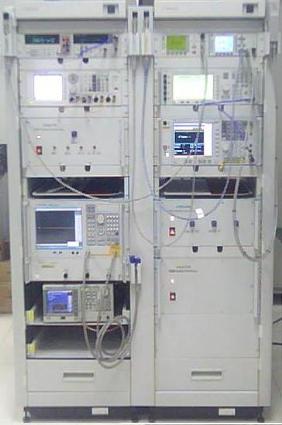

AT900 System Photo:





Please visit the following website for detail specifications of AT900 Instrument Calibration System:



http://www.ascentest.com/en/Product_info.php?ID=12-2022
