Ralab High Performance OCXO
Ralab RL Series high performance OCXO, with frequency up to 125MHz, has the first class phase noise and Low G-Sensitivity performance.

Product features and technical data:
System overview

Ralab RL Series high performance OCXO, with frequency up to 125MHz, has the first class phase noise and Low G-Sensitivity performance.

Function characteristics

Phase noise of 100MHz OCXO:

-136dBc/Hz @100Hz Offset
-162dBc/Hz @1kHz Offset
-172dBc/Hz @10kHz Offset
-183dBc/Hz @100kHz Offset
-183dBc/Hz @1MHz Offset
-183dBc/Hz @10MHz Offset



Phase Noise of 10MHz OCXO:

-105dBc/Hz @1Hz Offset
-135dBc/Hz @10Hz Offset
-155dBc/Hz @100Hz Offset
-165dBc/Hz @1kHz Offset
-165dBc/Hz @10kHz Offset
-165dBc/Hz @100kHz Offset

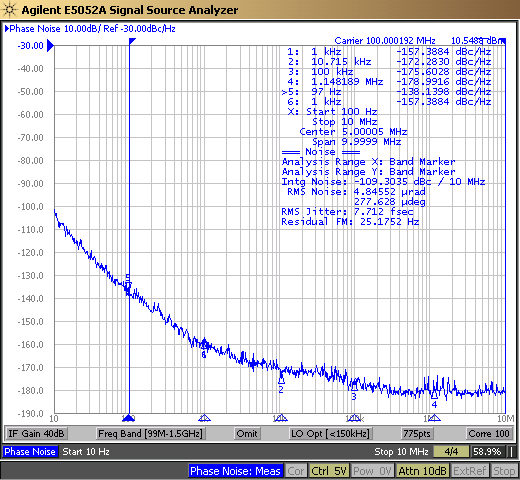

Ultra-low Phase Noise of RL 3181.07-100 OCXO (100MHz)
