AT800-RX is dedicated test system for verifying the receiver (RX) performance of wireless terminals of different wireless technologies.
AT800-RX is low-cost RX design verification test system which fully utilizes the customer's Wireless Tester & Signal Generators on hand, to accelerate the time-consuming RX test cases, such as Blocking Performance.

Supported wireless standards:

GSM / GSM-R / GPRS / EGPRS、WCDMA / HSDPA, TD-SCDMA, LTE-FDD, LTE-TDD (TD-LTE), IEEE 802.11 a/b/g/n, Bluetooth 1.2/2.0/EDR.

AT800-RX system is ideal design verification test tool for Wireless Terminal R&D.

1. AT800-RX system is built on the Mature, Flexible and Modular hardware and software platform of AT800 Pre-conformance Test system.
2. All major models of Wireless Testers and Signal Generators are very well supported.
3. All Test Cases are strictly designed according to wireless standards (Test Specifications).
4. Accurate, Automatic & Efficient.
5. Expandable, Upgradeable and Customizable, to support customer's specific test requirements and more wireless standards.

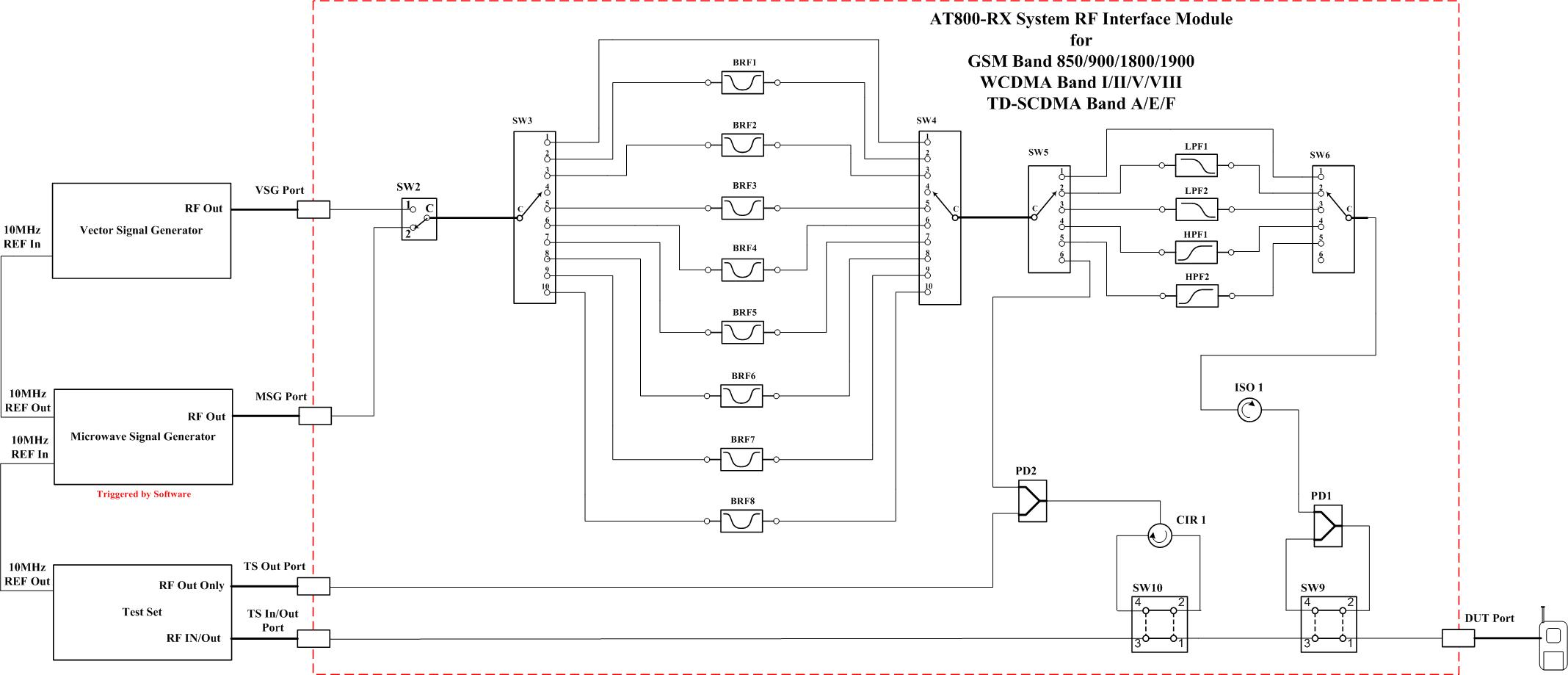

AT800-RX System Structure Overview:

AT800-RX RF Interface Module:
