| Product features and technical data: |
| System overview |
MPS-Tester-SW System Software controls Ascentest MPS Multi-Port RF/Microwave Switch Matrix and Vector Network Analyzer, to make accurate and fast S-Parameter measurement on multi-port components, such as 4-port Directional Couplers and 9-port Smart Antennas, as well Smart Phone Multi-band Antennas.
The software can also be used to control Vector Network Analyzer to measure S-Parameter directly and automatically.
Typical Test Applications:
1. Smart Antenna (9-port or 18-port)
2. Smart Phone Multi-band Antenna
3. Basestation filter, diplexer
4. (Dual/Hybrid) Directional Coupler
5. Power Splitter/Combiner
6. High Speed Cable, such as HDMI, USB3.0, QSFP+, SFP+, CXP, MiniSAS, etc.
7. Other Multi-port RF/Microwave Components |
| Function characteristics |
1. Support Vector Network Analyzers from Agilent, R&S, Transcom or other customer designated models.
2. Support Ascentest MPS Multi-Port RF/Microwave Switch Matrix.
3. Operator & Engineer Access Levels for Mass Production.

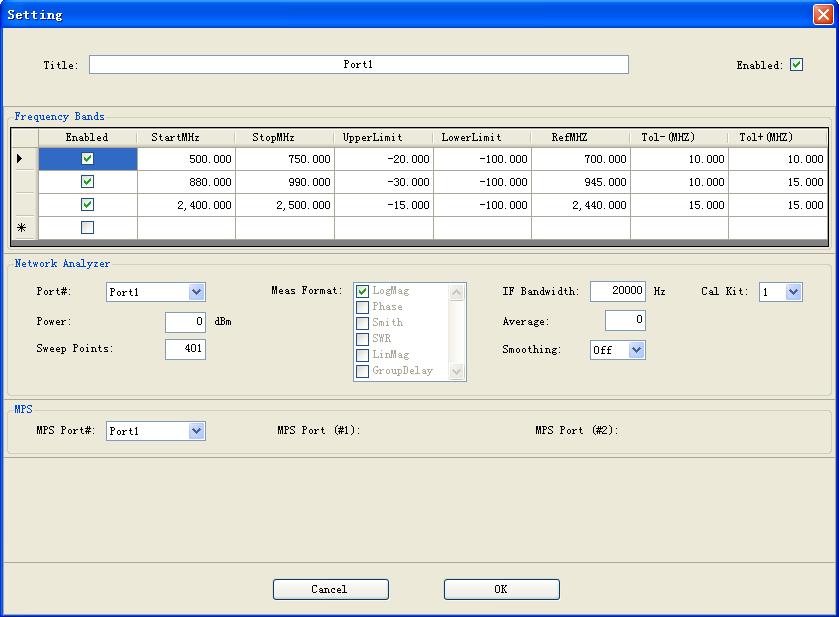

4. Flexible and convenient test parameter settings and configurations.
5. Built-in Dolphin Multi-port Calibration Algorithm, to replace 4-port or 8-port VNAs, expandable to support any other port numbers.
6. Special fuctions for Smart Phone Multi-band Antenna: Automatic Tuning Point calculation, and Limit Line setup for Reference Antenna.
7. Customizable Test Report, with database support.
8. Greatly increase test efficiency, accuracy and stability. |
| |
|
| |

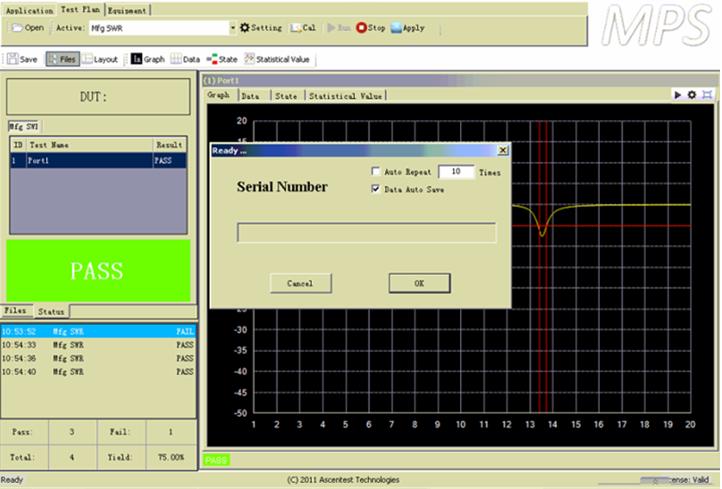

| Software structure |
|
| Order information（ Contact us） |
| MPS-Tester-SW Multi-port Vector Network Analysis System Software |
| |
|
|
|
